Single Point Dressers [top]

Tools in this section are available in any carat weight or quality in all shank sizes.

3/8" x 2-1/2" = Shank Number 624
7/16" x 2-1/2" = Shank Number 724
7/16" Shank With 5/8" Head = Shank Number 100
Specify Shank Size (A&B) When Ordering


Carat
Weight		 Extra Stock Quality Stock Standard Stock Commercial Stock Thrift Stock
724 624 100 724 624 100 724 624 100 724 624 100 724 624 100
.2 E51 u u Q51 u u S51 u u u C51 u u u T51 u u u
.25 E41 u u Q41 u u S41 u u u C41 u u u T41 u u u
.33 E31 u u Q31 u u S31 u u C31 u u T31 u u
.50 E21 u Q21 u S21 u u C21 u u T21 u u
.75 E43 Q43 S43 u u C43 u u T43 u u
1 E10 Q10 S10 u u C10 u T10
1.25 E141 Q141 S141 C141 T141 u
1.50 E121 Q121 S121 u C121 T121
1.75 E143 Q143 S143 C143 T143
2 E20 Q20 S20 C20 T20
2.5 E221 Q221 S221 C221 T221
3 E30 Q30 S30 C30 T30
Items shown with a "u" throughout catalog are a stock item.

Everlast Turnable Head Single Point
Carat
Weight		 "E"
Grade		 "Q"
Grade		 "S"
Grade		 "T"
Grade
.50 u u u
.75 u u u
1.00 u u
1.25
1.50 u
1.75
2.00
Available in "T" grade and any other carat weight

Congo Single Point
Carat
Weight		 3/8" x 3" 3/8" x 6" 7/16" x 3" 7/16" x 6"
.20 u u u u
.25 u u u u
.33 u u u u
.50 u u u u
.75 u u u u
1.00 u u u u
1.25
1.50 u u
1.75
2.00 u u
Magnetic Holder u
Magnets are permanent, with instant release lever and quick positive hold.  For use with 3/8" shank tools only (see above)



Custom Made Tools [top]

Items shown with a "u" throughout catalog are a stock item.

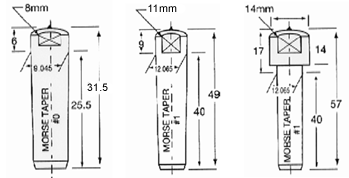

Gleason Heald Hertlein Okamoto Morse Taper Shanks
.15 Carat u .15 Carat u .10 Carat u .50 Carat u .20 Carat u .25 Carat u .25 Carat
.25 Carat u .25 Carat u .20 Carat 1.00 Carat u .50 Carat .50 Carat .50 Carat u
1.00 Carat 1.00 Carat 1.00 Carat



Automotive Dressing Tools [top]

Items shown with a "u" throughout catalog are a stock item.

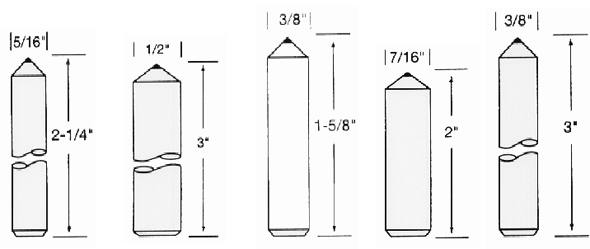

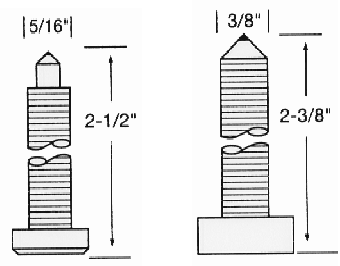

Berco Black & Decker
#1 Taper 5/16-18 Thread 3/8-24 Thread
.75 Carat u 5/8" Head 5/8" Head
1.00 Carat u .25 Carat u .25 Carat u
1.50 Carat u

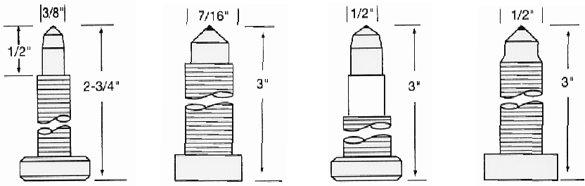

Kwik-Way
3/8-24 Thread 7/16-20 Thread 1/2-20 Thread 1/2-20 Thread
3/4" Head 3/4" Head 3/4" Head 3/4" Head
.25 Carat u .25 Carat u .25 Carat u .25 Carat u
Sioux Skil-Saw
3/8-24 Thread 1/4-28 RH Thread 5/16-18 Thread 5/16-18 Thread
3/4" Head 5/8" Head 5/8" Head 5/8" Head
.75 Carat u .25 Carat u .25 Carat u .25 Carat u
Storm Vulcan, Sunnen, Van Dorn, Van Norman
.25 Carat u .25 Carat u .25 Carat u .25 Carat u .25 Carat u


Multipoint Dressing Tools [top]

Items shown with a "u" throughout catalog are a stock item.
Cluster - Single Layer
Grade 5 Stone
Cluster		 7 Stone
Cluster
Super 200-002  u 200-003  u
Quality 200-012  u 200-013  u
Standard 200-022  u 200-023  u
Economy 200-032  u 200-033  u
Blade Tool
Number of
Stones		 Type 1 Layer 2 Layer 3 Layer
1 A 204-011 204-020 204-030
1 B 204-012 204-021 204-031
3 A 200-015 204-024 204-034
3 B 200-016 204-025 204-035
Cluster - Three Layer x 7/16" Shank
Grade 12 Stone Cluster
@ 4 per Layer		 Grade 15 Stone Cluster
@ 5 per Layer		 Grade 21 Stone Cluster
@ 7 per Layer
Regular 202-021  u Regular 202-001  u Regular 202-011  u
Heavy Duty 202-022  u Heavy Duty 202-002  u Heavy Duty 202-012  u
Extra Heavy Duty 202-023  u Extra Heavy Duty 202-003  u Extra Heavy Duty 202-013  u
Tungsten Carbide Matrix
Bullet Dresser		 T-Handle Dresser
Carat Weight Item # Grade Item #
2.00 202-021 Standard 201-001
3.00 202-022 Medium 201-002
3.00 202-023 Heavy Duty 201-003
Accu-Blast
Tool # Carat
Weight		 A B D
AB-1  2 1/2" 1/2" 1-1/2"
AB-2  4 1/2" 1/2" 1-1/2"
AB-3  4 1" 1/2" 2
AB-4  7 1" 1/2" 2



Grit Dressing Tools [top]

Items shown with a "u" throughout catalog are a stock item.
Economy Cluster Shapes
7/16" x 15/16" 7/16" x 15/16" 7/16" x 15/16"
101A1  u 101AB  u 101AC  u
Centerless, Cylindrical and Surface Grinders.
For grinding 20" x 3" and larger. Straight traverse truing.
7/16" x 1-1/4" 7/16" x 3/4" 7/16" x 3/4" 7/16" x 3/4"
112AD  u 112AE  u 131BD  u 131BE  u
Centerless, Cylindrical and Surface Grinders, For grinding wheels 12" x over 1" to 20" x 2-1/2".  Straight Traverse truing. Centerless, Cylindrical and Surface Grinders with angular truing post. For grinding wheels 12" x over 1" to 20" x 2-1/2".  Straight Traverse truing.
7/16" x 1-1/4" 7/16" x 1-1/4" 7/16" x 1-1/4"
123AF  u 123AG  u 123AH  u
Centerless and Cylindrical Grinders profile or form truing.  Also straight traverse and general tool room wheels 12" x over 1" to 20" x 2-1/2"
7/16" x 15/16" 7/16" x 15/16" 7/16" x 15/16"
142BA  u 142BB  u 142BC  u
Centerless, Cylindrical and Surface Grinders with angular truing post.  For grinding wheels 12" x 3" and larger.  Straight traverse truing.
7/16" x 1-1/4" 7/16" x 1-1/4" 7/16" x 1-1/4" 7/16" x 1-1/4" 7/16" x 1-3/16" 7/16" x 1-3/16"
151EF u 151EG  u 162ED  u 162EE  u 171RJ  u 171RK  u
Cylindrical Grinders 45°« angular wheelslide.  Also step and right angle shoulder dressing on centerless and cylindrical grinders.  Wheels to 20" x 2-1/2" Use on angular wheel slide machines, angular face wheels or slide and face truing or cylindrical or surface grinding wheels 20" x 2" and larger in grit sizes 46 and finer.  Form shape or angular truing. For general tool room applications
183L  u 183M  u 183O 183P
For production grinder dressing



Indexable Blade Single Point Tools [top]

Items shown with a "u" throughout catalog are a stock item.
Style Tool Number Style Tool Number Style Tool Number
Single Point
Blade Tool		 204-001  u
204-004  u		 Blade Tool 204-006  u 20 Stone Blade
24 Stone Blade		 204-008  u
204-010  u
Tool Holders for Indexable Blade Single Point Tools
8 Stone x 5/8" (above) 16, 20, and 24 Stone x 1" (above)
Tool Number 7131  u Tool Number 7156  u
Tool Number 7615  u Tool Number 7616  u
Indexable Tools and Tool Holders can also be made to your exact specifications, at additional cost.



Shaped Diamond Tools [top]

Items shown with a "u" throughout catalog are a stock item.
Phonopoints
Small cone pointed tool used for precision form dressing
Made with new vacuum bonding which improves diamond to shank adherence.

Custom order in any angle 30° and larger.>
Size (in.) Usage 60° Tool Number 75° Tool Number 90° Tool Number
.081 x 1/2 Regular 304-061  u 304-071  u 304-091  u
.081 x 1/2 Heavy Duty 304-062  u 304-072  u 304-092  u
.081 x 1/2 Super 304-062S 304-072Su 304-092S  u
1/8 x 1 Regular 304-063  u 304-073  u 304-093  u
1/8 x 1 Heavy Duty 304-064  u 304-074  u 304-094  u
1/8 x 1 Super 304-065S   304-075S u 304-095S u
3/16 x 1 Regular 304-065  u 304-075  u 304-095  u
3/16 x 1 Heavy Duty 304-066  u 304-076  u 304-096  u
3/16 x 1 Super 304-066S 304-076S u 304-096S u
1/4 x 1-1/2 Regular 304-067  u 304-077  u 307-097  u
1/4 x 1-1/2 Heavy Duty 304-068  u 304-078  u 304-098  u
1/4 x 1-1/2 Super 304-068S 304-078S u 304-098S u

Concave Radius Tool

MRL 359 - Unlapped natural diamond with the point concentric with the shank to form the desired radius.

MRL 359E - Lapped diamond to help swing a range of concave radii.
Custom shank sizes available
Radius MRL359 Tool Number
Unlapped		 MRL 359E Tool Number
Lapped
.010" 306-010  u 306-010L
.015" 306-015  u 306-015L
.020" 306-020  u 306-020L
.025" 306-025  u 306-025L
.031" 306-031  u 306-031L
.062" 306-062  u 306-062L
.125" 306-125  u 306-125L

Ball Point Plunge Dresser


MRL631
Radius Tool Number Radius Tool Number
.005" 307-005  u .035" 307-035
.010" 307-010  u .040" 307-040
.015" 307-015  u .045" 307-045
.020" 307-020  u .050" 307-050
.025" 307-025  u .055" 307-055
.031" 307-031  u .062" 307-062  u



Convex Radius Tool

MRL710
Radius Tool Number
.015" to .125" 308-001  u
.126" to .250" 308-002  u
.251" to .500" 308-003  u

Coned Radius Dressers Available Specials

Also available with pre-formed radii, along with other shank sizes and angles.
Carat
Weight		 60°
Tool #		 Stock 75°
Tool #		 Stock 90°
Tool #		 Stock Okuma Tool 75° Cone
7/16 x 1-3/8"
724 624 724 624 724 624
.25 300-061 u u 300-071 u u 300-091 u u .50 Carat .015 Radius
.33 300-062 u u 300-072 u u 300-092 u u 1.00 Carat .025 Radius
.50 300-063 u u 300-073     300-093     1.50 Carat
.75 300-064 u u 300-074     300-094


Lapped Chisels

Also available with pre-formed radii, along with other shank sizes and angles.
Carat
Weight		 40°
Tool #		 Stock 60°
Tool #		 Stock 75°
Tool #		 Stock 90°
Tool #		 Stock
724 624 724 624 724 624 724 624
.25 301-041 301-061 u u 301-071 301-091
.33 301-042 301-062 u u 301-072 301-092
.50 301-043 301-063 u u 301-073 301-093
.75 301-044 301-064 u 301-074 301-094
1.00 301-045 301-065 301-075 301-095


Special Chisels
Landis
 Mitsubishi

Available in .75 & 1.50 Carat		 Toyoda

Available in .75 & 1.50 Carat


Natural Chisels
Precision centered
Standard shank size 3/8" or 7/16" x 2"
Usage
Rating		 Tool
Number		 Stock
720 620
Light Duty 302-001 u
Medium Duty 302-002 u
Heavy Duty 302-003


Rat Tail Dressers
Radius Tool Number
.031" 303-031  u
.047" 303-047  u
.062" 303-062  u
.093" 303-093  u
.125" 303-125  u


Hoglunds

Shown in natural diamond "ND". Also available in Polycrystalline "PCD".
Radius (R) 42° (A)
Tool #		 Shank (L) 48° (A)
Tool #		 Shank (L) 60° (A)
Tool #		 Stock (L) 72° (A)
Tool #		 Stock (L)
#15 #16 #15 #16 #15 #16 #15 #16
.005" 400-4025 400-4805 400-6005 400-7205
.010" 400-4210     400-4810     400-6010     400-7210
.015" 400-4215 400-4815 400-6015 400-7215
020" 400-4220     400-4820     400-6020     400-7220
.025" 400-4225 u u 400-4225 400-6025 400-7225 u u


Jones & Lamson
Radius (R) 40° (A)
Tool #		 Radius (R) 50° (A)
Tool #
Shown in natural diamond "ND". Also available in Polycrystalline "PCD".
.004" 401-404 .0025" 401-502
.007" 401-407 .004" 401-504
.011" 401-411 .007" 401-507 u
.017" 401-417 .011" 401-511 u
.020" 401-420 .017" 401-517
    .020" 401-520


Diaform
Radius
(R)		 30° (A)
Tool #		 Shank OAL 40° (A)
Tool #		 Shank OAL 60° (A)
Tool #		 Shank OAL
Shown in natural diamond "ND". Also available in Polycrystalline "PCD".
1-3/8" Shank OAL = Standard Stone
1=3/4" Shank OAL - Elite Stone
1-3/8" 1-3/4" 1-3/8" 1-3/4" 1-3/8" 1-3/4"
Rougher 402-600 u u
.002" 402-302 402-402 402-602
.005" 402-305 402-405 u u 402-605 u u
.010" 402-310 402-410 u u 402-610 u u
402-415 402-615
402-420 402-620


Moore Pantograph Dressers
Radius
(R)		 30° (A)
Tool #		 40° (A)
Tool #		 60° (A)
Tool #		 90° (A)
Tool #
Shown in natural diamond "ND". Also available in Polycrystalline "PCD".
.005" 403-305 403-405 u 403-605 u 403-905
.010" 403-310 403-410 u 403-410 u 403-910
.015" 403-315 403-415 403-615 403-915
.020" 403-320 403-420 403-620 403-920
.025" 403-325 403-425 403-625 403-925


Diamond Thread Grinders
Size Machine Grade Tool # Jones & Lamson (J&L)


Ex-Cell-O
1/4" x 1" J&L Commercial 404-001 u
1/4" x 1" J&L Standard 404-002 u
1/4" x 1" J&L Super 404-003 u
1/4" x 1" J&L Reject 404-004 u
3/8" x 1-5/8" Ex-Cell-O Commercial 404-005 u
3/8" x 1-5/8" Ex-Cell-O Standard 404-006 u
3/8" x 1-5/8" Ex-Cell-O Super 404-007 u
3/8" x 1-5/8" Ex-Cell-O Reject 404-008 u


Reishauer Diamond Tools
Tools custom manufactured to your print and tip specifications
Reishauer Type ZA & NZA also available

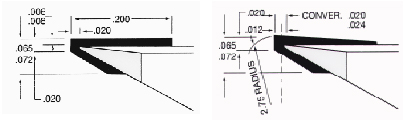

Tip Configurations
for DP6 - DP24 for DP26 - DP48

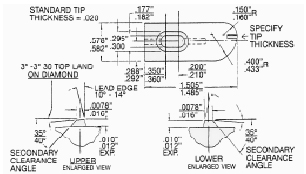

Tool #1827 - Upper & Lower


Root Crushers
Available in PCD or Diamond Grit



Radius and Angle Dressers [top]

Economy Angle Dresser & Angle Plate Economy Radius Dresser
Includes Tool #C51620 Includes Tool #S41424
A low cost angle dresser designed to save time and money.  The base angle plate is a heavy, precision ground iron alloy casting.  The angle dresser works beneath the wheel, making it unnecessary to remove the wheel guard. An indispensable tool for shaping and dressing grinding wheels to any desired radius up to 1-3/4" convex and 4" concave.
Tool# 803-001 Specifications Tool #804-001 Features
Angle Plate Overall Chatter Resistant
3" Length 5-1/2" Spring Loaded
3" Width 4-1/2" Accurate
3" Height 5" Safe
4 lbs. Weight 7 lbs.
